• Air conditioning, dual-zone automatic climate control with individual climate settings for driver and right-front passenger
• Audio system feature, Bose premium speaker system with sub-woofer in center console

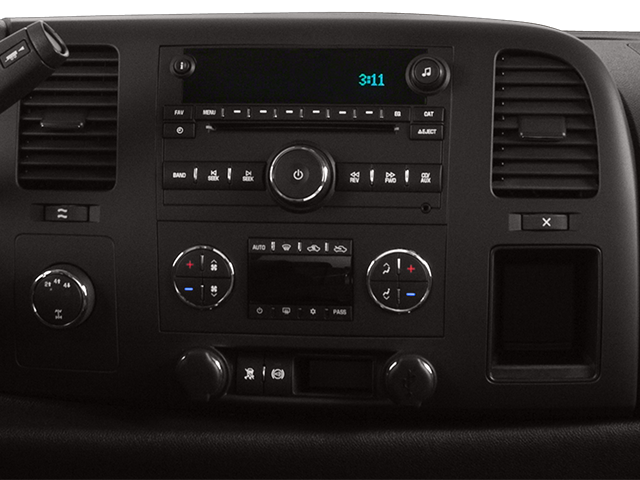

• Audio system, AM/FM stereo with CD player and MP3 playback USB port, auxiliary input jack, seek-and-scan, digital clock, auto-tone control, Radio Data System (RDS), automatic volume, TheftLock and 36 cross-band presets
• Bluetooth® for phone personal cell phone connectivity to vehicle audio system
• Coat hooks, rear driver and passenger side

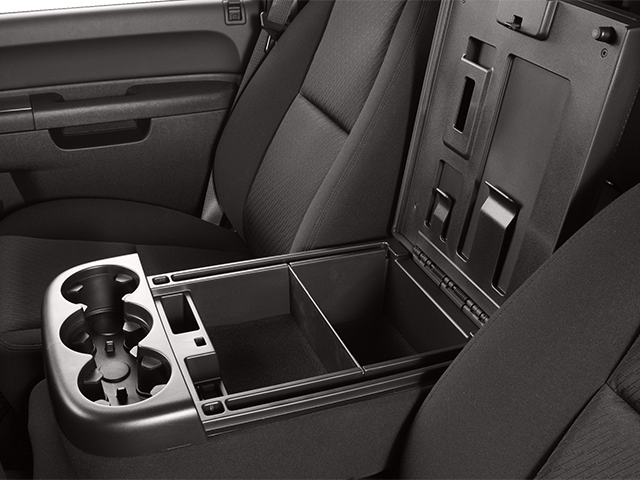

• Console, floor with storage compartment, 2 auxiliary power outlets and dual cup holders
• Cruise control, electronic with set and resume speed, located on steering wheel
• Defogger, rear-window electric (Not available with (A48) power sliding rear window.)
• Door locks, power includes Remote Keyless Entry
• Floor covering, color-keyed carpeting with rubberized vinyl floor mats (Crew Cab models also include rear floor mats)
• Lighting, interior with dome and reading lights, illuminated entry feature and backlit instrument panel switches
• Mirror, inside rearview auto-dimming
• Power outlets 2 auxiliary instrument panel-mounted with covers, 12-volt
• Remote vehicle starter system includes Remote Keyless Entry with 2 transmitters, panic button and content theft alarm (Remote Keyless Entry does not lock/unlock tailgate.)
• Seat adjuster, driver 10-way power
• Seat adjuster, front passenger 10-way power

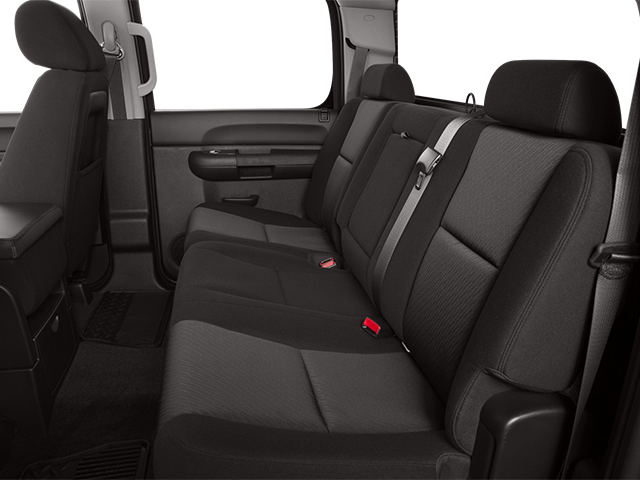

• Seat, rear 60/40 folding bench (folds up), 3-passenger, folding (includes child seat top tether anchor)

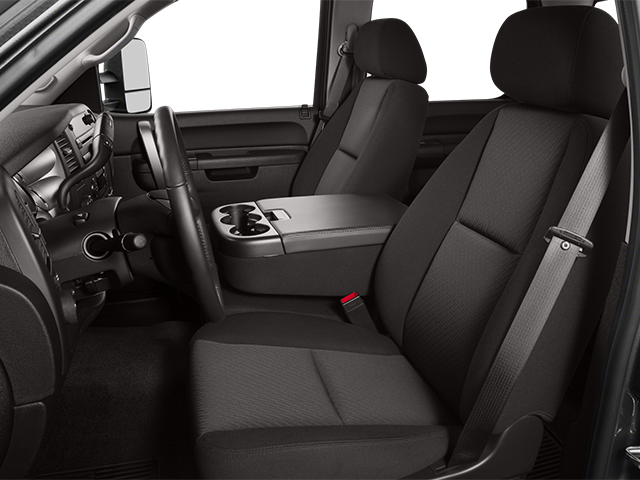

• Seats, front bucket includes 10-way power driver and front passenger seat adjusters including 2-way power lumbar control, heated seat cushions and seatbacks, 2-position driver memory, adjustable outboard head restraints, floor console and storage pockets
• Seats, Leather-appointed front seats
• Steering wheel controls, mounted audio controls

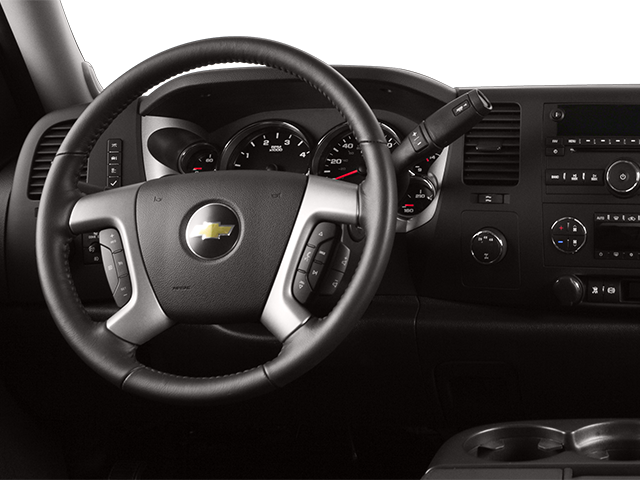

• Steering wheel, leather-wrapped with theft-deterrent locking feature
• Visors, driver and front passenger, sliding with clip and illuminated vanity mirror on driver and passenger-side, Opal Gray-colored
• Warning tones headlamp on, key-in-ignition, driver and passenger buckle up reminder and turn signal on

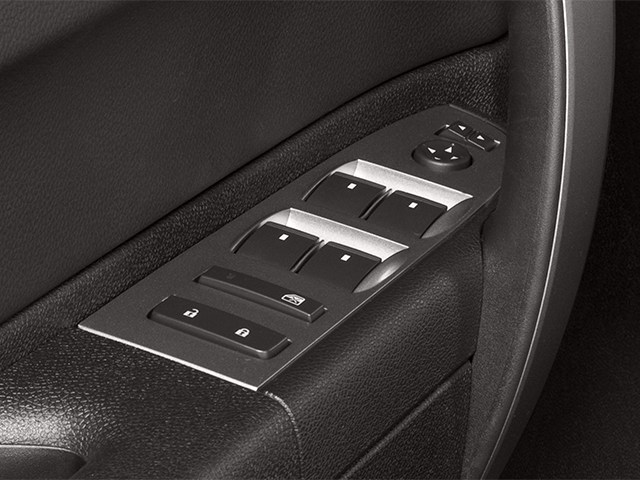

• Windows, power with driver Express-Down (Includes front passenger Express-down.)

• Air cleaner, high-capacity
• Alternator, 125 amps
• Battery, heavy-duty 600 cold-cranking amps, maintenance-free with rundown protection and retained accessory power
• Brakes, 4-wheel antilock, 4-wheel disc with dual rear wheels
• Differential, heavy-duty automatic locking rear
• Exhaust, aluminized stainless-steel muffler and tailpipe
• Four wheel drive
• Frame, fully boxed, hydroformed front section
• Pickup box, Fleetside
• Steering, power, recirculating ball
• Suspension Package, Handling/Trailering, heavy-duty includes 35mm monotube shocks and 34mm front stabilizer bar
• Suspension, front independent, torsion bar
• Suspension, rear 4+1+2 multi-leaf springs for single rear wheel and 3+1+2 multi-leaf springs for dual rear wheel
• Trailer brake controller, integrated
• Trailering equipment, heavy-duty includes trailering hitch platform and 2.5- inch receiver with 2" adapter, 7-wire harness (harness includes wires for: park lamps, backup lamps, right turn, left turn, electric brake lead, battery and ground) with independent fused trailering circuits mated to a 7-way sealed connector, wiring harness for after-market trailer brake controller (located in the instrument panel harness) and (JL1) integrated trailer brake controller (Will be deleted if (ZW9) pickup box delete is ordered.)
• Transfer case, electronic shift with rotary dial controls (Requires 4WD models)

• Air bags, frontal, driver and right-front passenger (Always use safety belts and the correct child restraints for your child's age and size, even in vehicles equipped with air bags. Children are safer when properly secured in a rear seat in the appropriate infant, child or booster seat. See the Owner's Manual and child safety seat instructions for more safety information.)
• Daytime Running Lamps with automatic exterior lamp control
• Door locks, rear child security (Crew Cab models only.)

Ltz Preferred Equipment Group ($0)

Standard Equipment

Seats, Front Bucket ($0)

10-Way Power Driver And Front Passenger Seat Adjusters Including 2-Way Power Lumbar Control Heated Seat Cushions And Seatbacks 2-Position Driver Memory Adjustable Outboard Head Restraints Floor Console And Storage Pockets (Std)

Suspension Package, Handling/Trailering, Heavy-Duty ($0)

35Mm Monotube Shocks And 34Mm Front Stabilizer Bar (Std)

Tire, Spare Lt235/80R17e Highway ($382)

Steel Spare Wheel (Spare Wheel Will Not Cosmetically Match The Other 6 Wheels) (Std)

Trailering Wiring Provisions, For Camper, Fifth Wheel And Gooseneck Trailer ($35)

Additional 7-Way Wiring Harness Routed To Front Of Pickup Box

Additional Packages ($0)

Audio System Am/Fm Stereo With Cd Player And Mp3 Playback Usb Port Auxiliary Input Jack Seek-And-Scan Digital Clock Auto-Tone Control Radio Data System (Rds) Automatic Volume Theftlock And 36 Cross-Band Presets (Std)Battery Heavy-Duty Dual 730 Cold-Cranking Amps Maintenance-Free With Rundown Protection And Retained Accessory PowerEngine Block HeaterExhaust BrakeGvwr 13025 Lbs. (5908 Kg) With Dual Rear WheelsLamps Smoked Amber Roof MarkerPaint SolidRear Axle 3.73 RatioSummit WhiteSwitch High IdleTires Lt235/80R17e All-Season Highway Blackwall (Std)Transmission Allison 1000 6-Speed Automatic Electronically Controlled With Overdrive Electronic Engine Grade Braking And Tow/Haul Mode

• ENGINE BLOCK HEATER
• SEATS FRONT BUCKET includes 10-way power driver and front passenger seat adjusters including 2-way power lumbar control heated seat cushions and seatbacks 2-position driver memory adjustable outboard head restraints floor console and storage pockets (STD)
• WHEELS 17" (43.2 CM) FORGED POLISHED ALUMINUM (STD)
• REAR AXLE 3.73 RATIO
• TRANSMISSION ALLISON 1000 6-SPEED AUTOMATIC ELECTRONICALLY CONTROLLED with overdrive electronic engine grade braking and tow/haul mode
• TIRE SPARE LT235/80R17E HIGHWAY includes steel spare wheel (spare wheel will not cosmetically match the other 6 wheels) (STD)
• SWITCH HIGH IDLE
• TIRES LT235/80R17E ALL-SEASON HIGHWAY BLACKWALL (STD)
• TRAILERING WIRING PROVISIONS FOR CAMPER FIFTH WHEEL AND GOOSENECK TRAILER includes additional 7-way wiring harness routed to front of pickup box
• AUDIO SYSTEM AM/FM STEREO WITH CD PLAYER AND MP3 PLAYBACK USB port auxiliary input jack seek-and-scan digital clock auto-tone control Radio Data System (RDS) automatic volume TheftLock and 36 cross-band presets (STD)
• PAINT SOLID

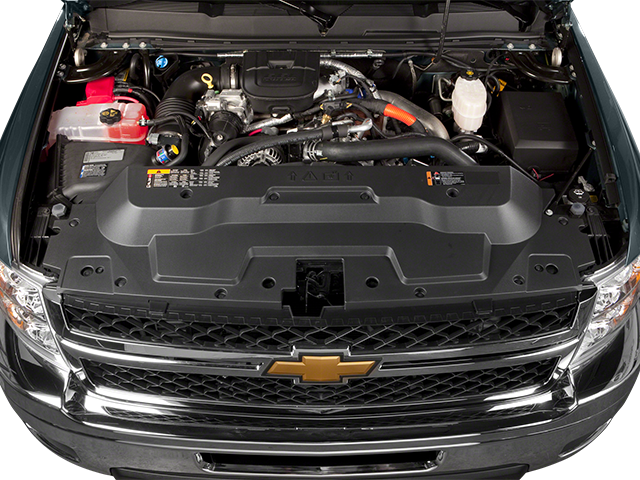

• ENGINE DURAMAX 6.6L TURBO DIESEL V8 B20-DIESEL COMPATIBLE (397 hp @ 3000 rpm 765 lb-ft of torque @ 1600 rpm) Includes (K40) exhaust brake (TUV) heavy-duty dual 730 cold-cranking-amp battery and (K05) engine block heater.)
• LTZ PREFERRED EQUIPMENT GROUP includes standard equipment
• SUSPENSION PACKAGE HANDLING/TRAILERING HEAVY-DUTY includes 35mm monotube shocks and 34mm front stabilizer bar (STD)
• LAMPS SMOKED AMBER ROOF MARKER
• SUMMIT WHITE
• LIGHT CASHMERE/DARK CASHMERE LEATHER-APPOINTED FRONT SEAT TRIM (Interior color including seat trim has lighter/darker two-tone effect.)
• GVWR 13 025 LBS. (5908 KG) WITH DUAL REAR WHEELS
• BATTERY HEAVY-DUTY DUAL 730 COLD-CRANKING AMPS MAINTENANCE-FREE with rundown protection and retained accessory power
• EXHAUST BRAKE
• Dual Rear Wheels
• Locking/Limited Slip Differential
• Four Wheel Drive
• Tow Hitch
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Aluminum Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• Tow Hooks
• Automatic Headlights
• Fog Lamps
• Heated Mirrors
• Power Mirror(s)
• Integrated Turn Signal Mirrors
• Privacy Glass
• Intermittent Wipers
• AM/FM Stereo
• CD Player
• MP3 Capability
• Auxiliary Audio Input
• Satellite Radio
• Requires Subscription
• Premium Sound System
• Bluetooth® Connection
• Power Driver Seat
• Power Passenger Seat
• Bucket Seats
• Heated Front Seat(s)
• Driver Adjustable Lumbar
• Passenger Adjustable Lumbar
• Seat Memory
• Leather Seats
• Power Driver Seat
• Power Passenger Seat
• Rear Bench Seat
• Power Outlet
• Floor Mats
• Adjustable Steering Wheel
• Leather Steering Wheel
• Steering Wheel Audio Controls
• Power Windows
• Keyless Entry
• Power Door Locks
• Security System
• Keyless Entry
• Power Door Locks
• Remote Engine Start
• Cruise Control
• Climate Control
• Multi-Zone A/C
• A/C
• Rear Defrost
• Power Outlet
• Auto-Dimming Rearview Mirror
• Driver Vanity Mirror
• Passenger Vanity Mirror
• Driver Illuminated Vanity Mirror
• Passenger Illuminated Visor Mirror
• Front Reading Lamps
• Daytime Running Lights
• Driver Air Bag
• Passenger Air Bag
• Telematics
• Navigation from Telematics
• Requires Subscription
• Child Safety Locks

• Brakes
• Brake ABS System: 4-Wheel
• Brake Type: Pwr
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Cargo Area Dimensions
• Cargo Box (Area) Height (in): 21.00
• Cargo Box Length : Floor (in)
• Cargo Box Width : Floor (in)
• Cargo Box Width : Top, Rear (in)
• Cargo Box Width : Wheelhousings (in)
• Cargo Volume (ft³): 75.5
• Tailgate Width (in): 61.60
• Electrical
• Cold Cranking Amps : 0° F (2nd)
• Cold Cranking Amps : 0° F (Primary)
• Maximum Alternator Capacity (amps): 125
• Emissions
• Tons/yr of CO2 Emissions : 15K mi/year
• Exterior Dimensions
• Cab to Axle (in): 56.00
• Front Bumper to Back of Cab (in): 150.90
• Ground Clearance, Front (in): 9.60
• Ground Clearance, Rear (in): 8.40
• Ground to Top of Load Floor (in): 37.90
• Height, Overall (in): 77.90
• Length, Overall w/o rear bumper (in): 259.10
• Overhang, Front (in): 38.80
• Overhang, Rear w/o bumper (in): 52.60
• Wheelbase (in): 167.70
• Width, Max w/o mirrors (in): 95.90
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 36.0
• Interior Dimensions
• Front Head Room (in): 41.30
• Front Hip Room (in): 60.30
• Front Leg Room (in): 41.30
• Front Shoulder Room (in): 65.20
• Passenger Capacity: 5
• Second Head Room (in): 40.60
• Second Hip Room (in): 65.50
• Second Leg Room (in): 39.00
• Second Shoulder Room (in): 65.20
• Steering
• Steering Ratio (:1), At Lock: N/A
• Steering Ratio (:1), On Center: 16.00
• Steering Type: Pwr Recirculating Ball
• Turning Diameter - Curb to Curb (ft): 50.5
• Turning Diameter - Wall to Wall (ft): N/A
• Summary
• Body Code: E63
• Body Style: Crew Cab Pickup
• Vehicle Name: Chevrolet Silverado 3500HD
• Suspension
• Axle Capacity - Front (lbs): 4800
• Axle Capacity - Rear (lbs): 9750
• Axle Ratio (:1) - Rear: 3.73
• Axle Type - Front: Independent
• Axle Type - Rear: Full-Floating
• Shock Absorber Diameter - Front (mm): 35.00
• Shock Absorber Diameter - Rear (mm): 35.00
• Spring Capacity - Front (lbs): 4800
• Spring Capacity - Rear (lbs): 9750
• Stabilizer Bar Diameter - Front (in): 1.32
• Suspension Type - Front: Independent
• Suspension Type - Rear: Multi-Leaf
• Tires
• Front Tire Capacity (lbs): 2515
• Front Tire Order Code: QQO
• Front Tire Size: LT235/80R17E
• Rear Tire Capacity (lbs): 2470
• Rear Tire Order Code: QQO
• Rear Tire Size: LT235/80R17E
• Revolutions/Mile : 45 mph - Front
• Revolutions/Mile : 45 mph - Rear
• Revolutions/Mile : 45 mph - Spare
• Spare Tire Order Code: ZQO
• Spare Tire Size: LT235/80R17E
• Trailering
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 5575
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 22300
• Maximum Trailering Capacity (lbs): 22300
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 2700
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 18000
• Weight Information
• Curb Weight - Front (lbs): 3816
• Curb Weight - Rear (lbs): 2919
• Gross Axle Wt Rating - Front (lbs): 5600
• Gross Axle Wt Rating - Rear (lbs): 9375
• Gross Vehicle Weight Rating Cap (lbs): 13025
• Wheels
• Front Wheel Material: Steel
• Front Wheel Size (in): 17 x 6.5
• Rear Wheel Material: Steel
• Rear Wheel Size (in): 17 x 6.5
• Spare Wheel Material: Steel
• Spare Wheel Size (in): 17 x 6.5
